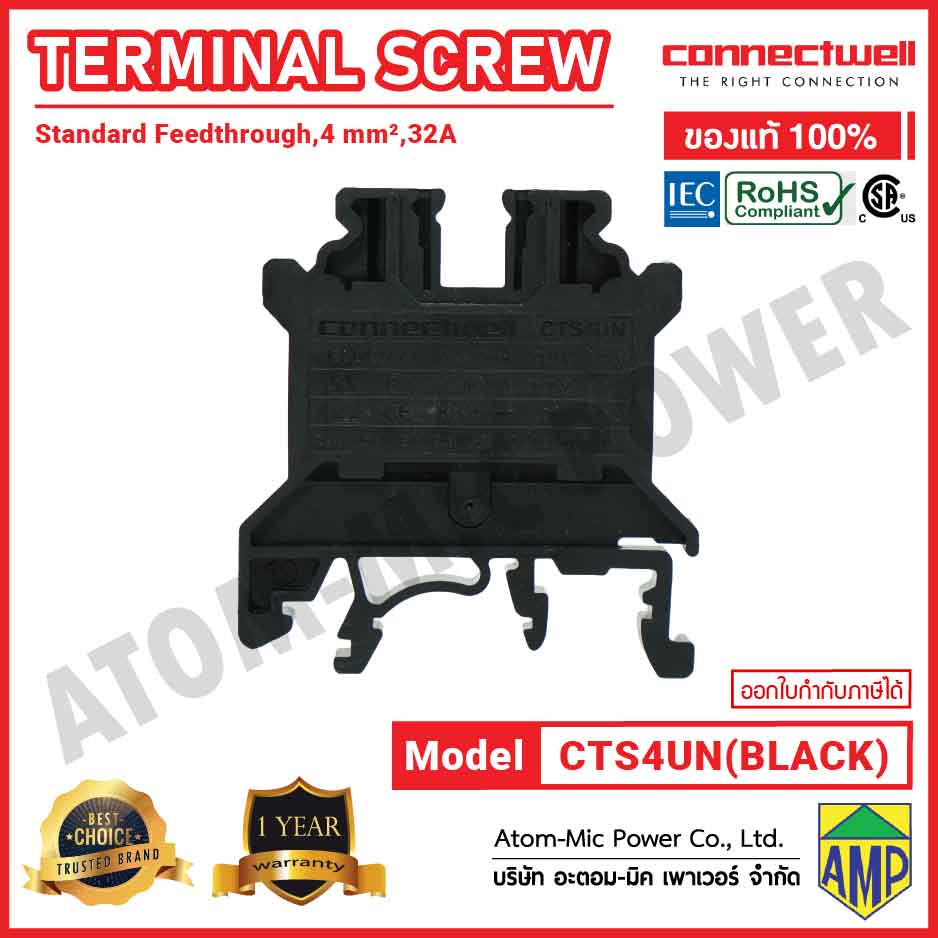

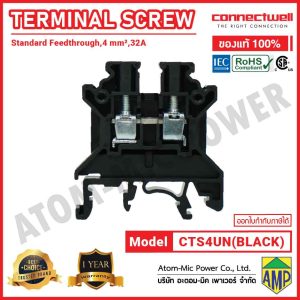

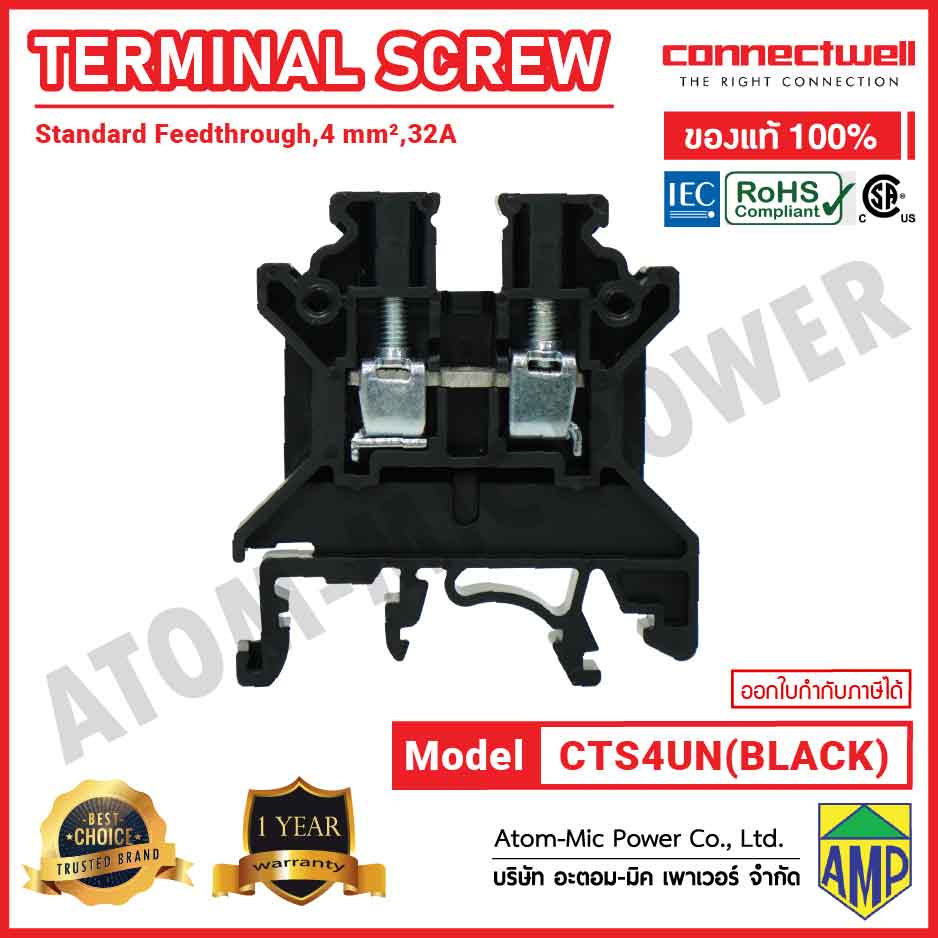

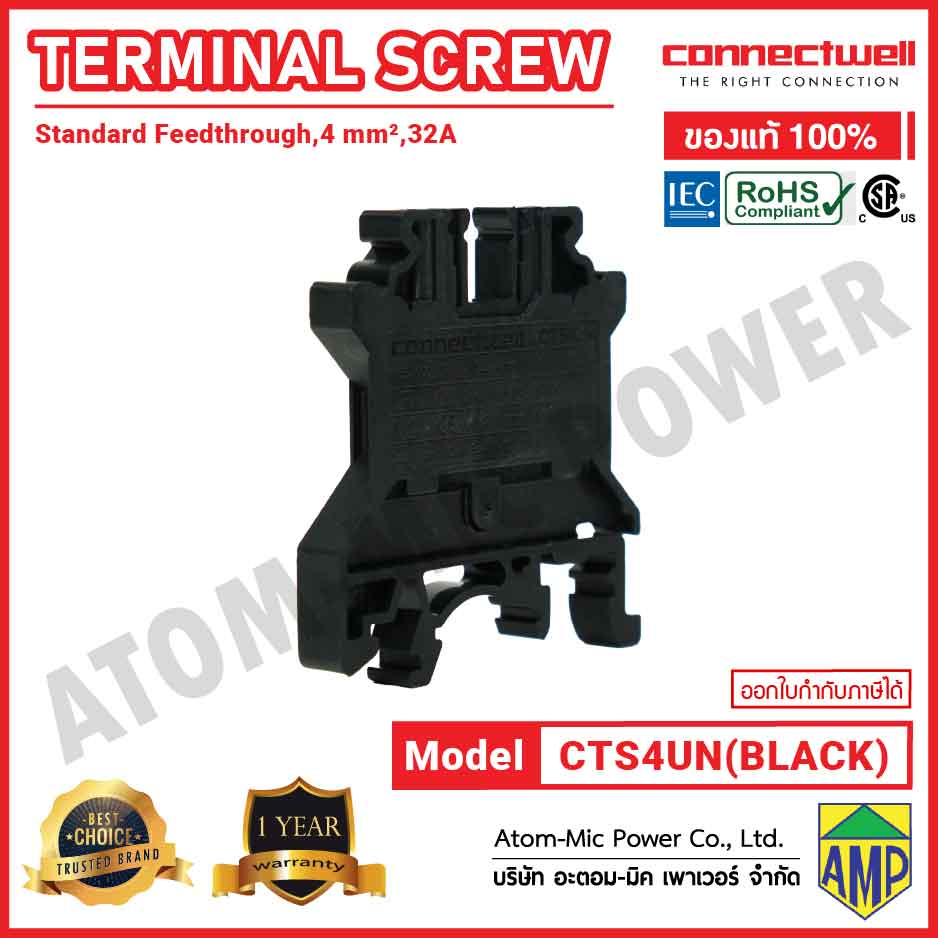

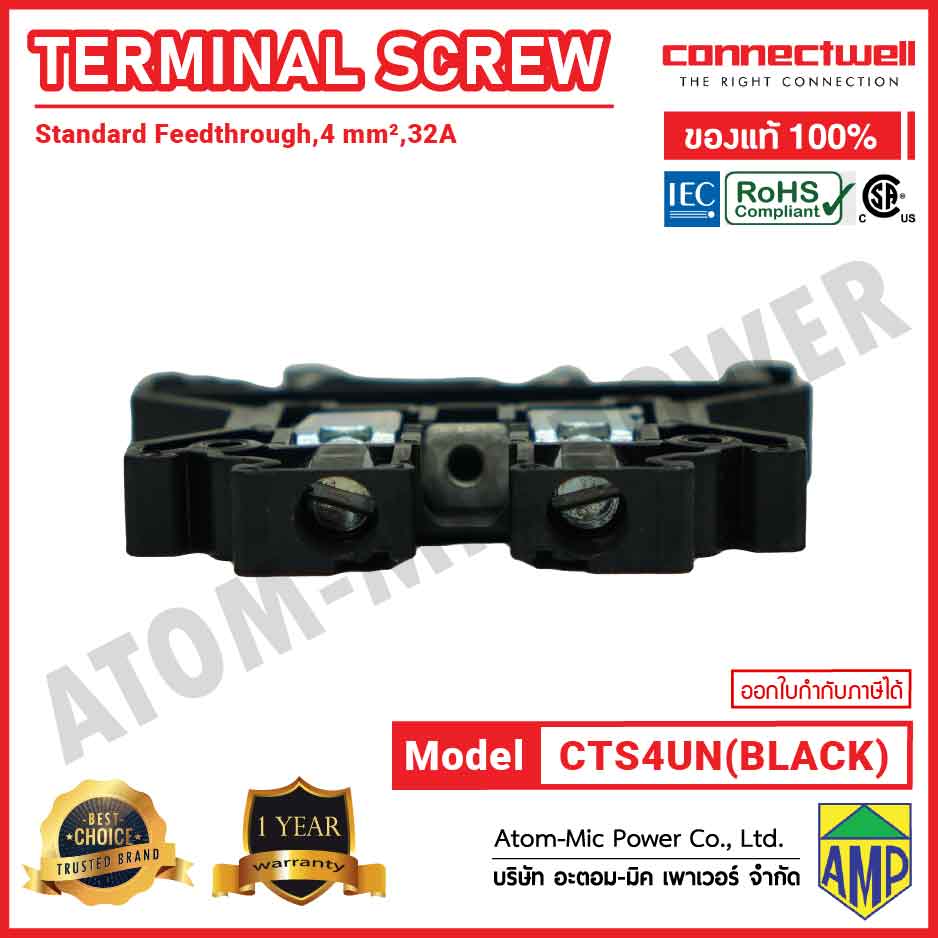

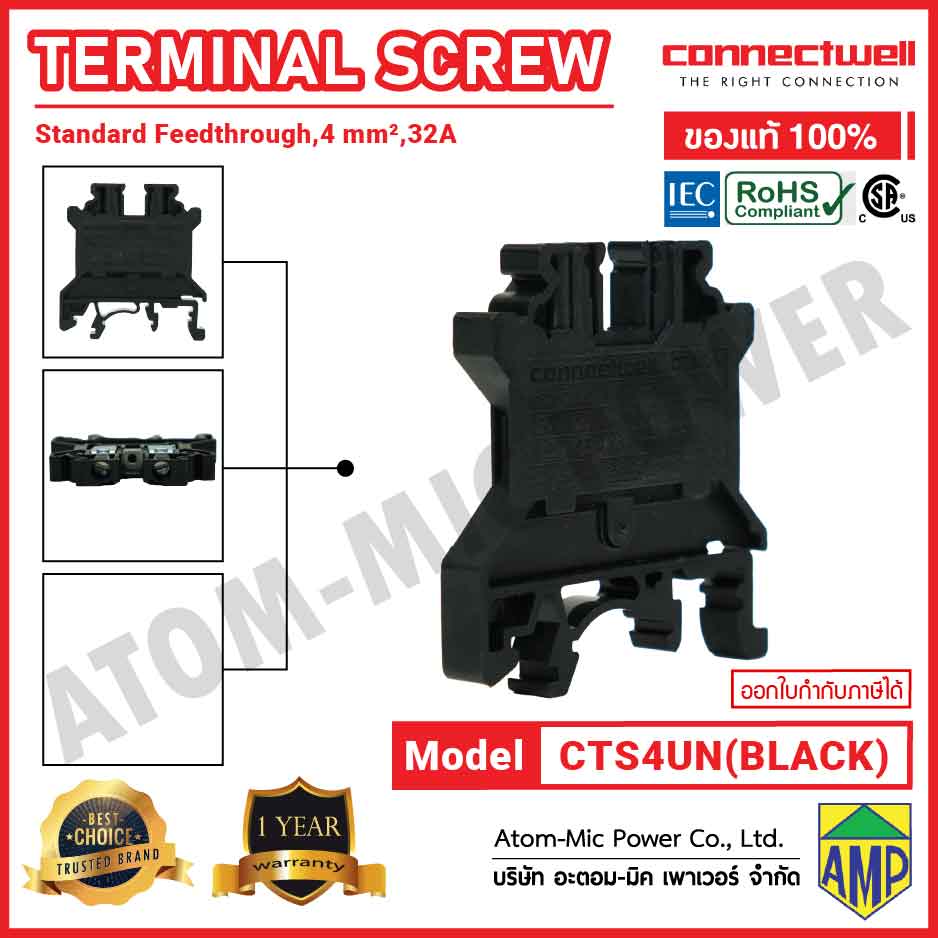

CONNECTWELL – Screw Clamp Feedthrough Terminal Block – CTS4UN(BLACK)

CTS4UN is a feedthrough terminal block in black colour is a versatile solution for reliable wire-to-wire connections, featuring two connection points for straightforward circuit continuity. Designed with a universal mounting foot, it supports installation on DIN 15, DIN 32, and DIN 35 rails, offering flexibility across various panel configurations. The terminal block allows the connection of two wires using twin ferrule lugs, ensuring secure, vibration-resistant terminations. For circuit distribution and potential looping, it supports jumpering via screw-type jumpers, which are available in multiple pole configurations to suit different wiring needs. These terminal blocks are also available in multiple colours.

CTSG4 is the same profile ground terminal block.

Short-Time Withstand Current
0.48 kA
Type of Connection
Screw Clamp
Wire Entry Orientation
Side
Operating Temperature Range
-40 to +105
Number of Levels : 1
Number of Connections : 2
Rated Voltage (IEC) : 1000 V
Rated Current (IEC) : 32 A
Tightening Torque (IEC) : 0.5 Nm
Rated Voltage (UL/CSA) : 600 V
Rated Current (UL/CSA) : 35 A
Tightening Torque (UL/CSA) : 7 lb-in
Mounting Possibility : DIN 32/DIN 35/DIN 35-15 Rail
Screw Size : M3
Operated by : Screwdriver
Rated Surge Voltage : 8 kV
Overvoltage Category : III
Pollution Degree : 3
