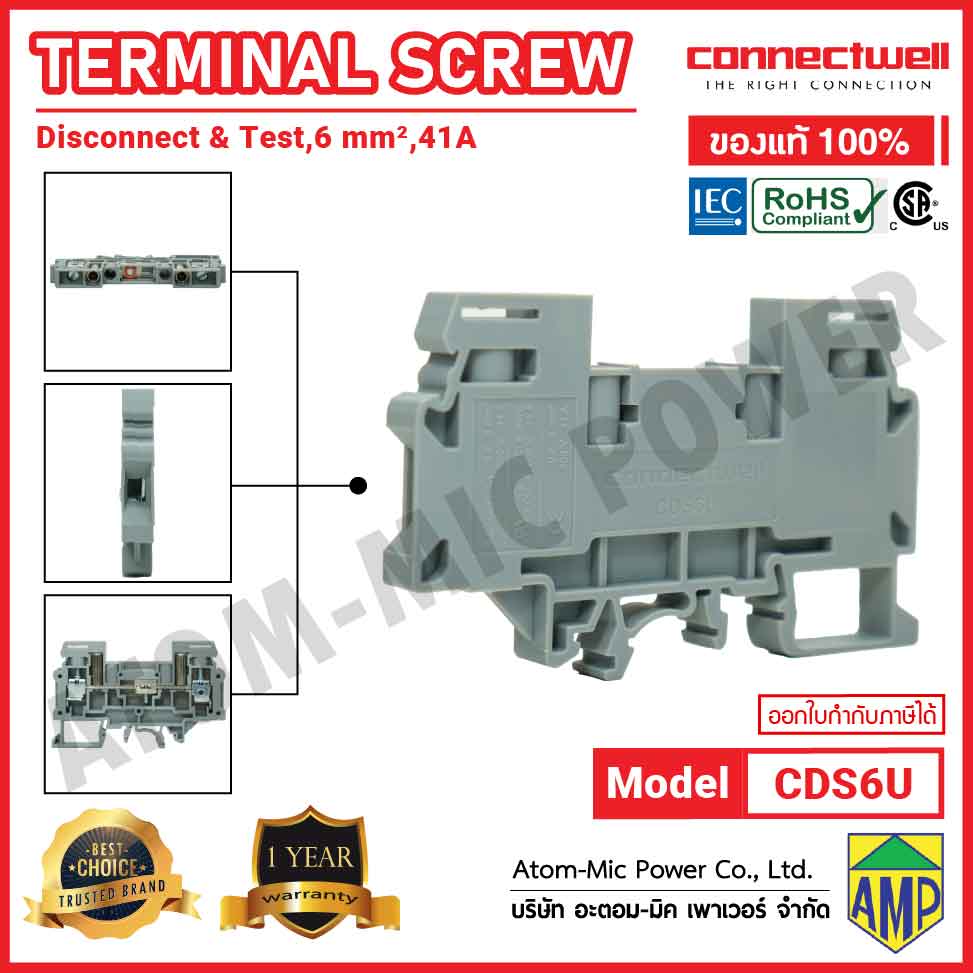

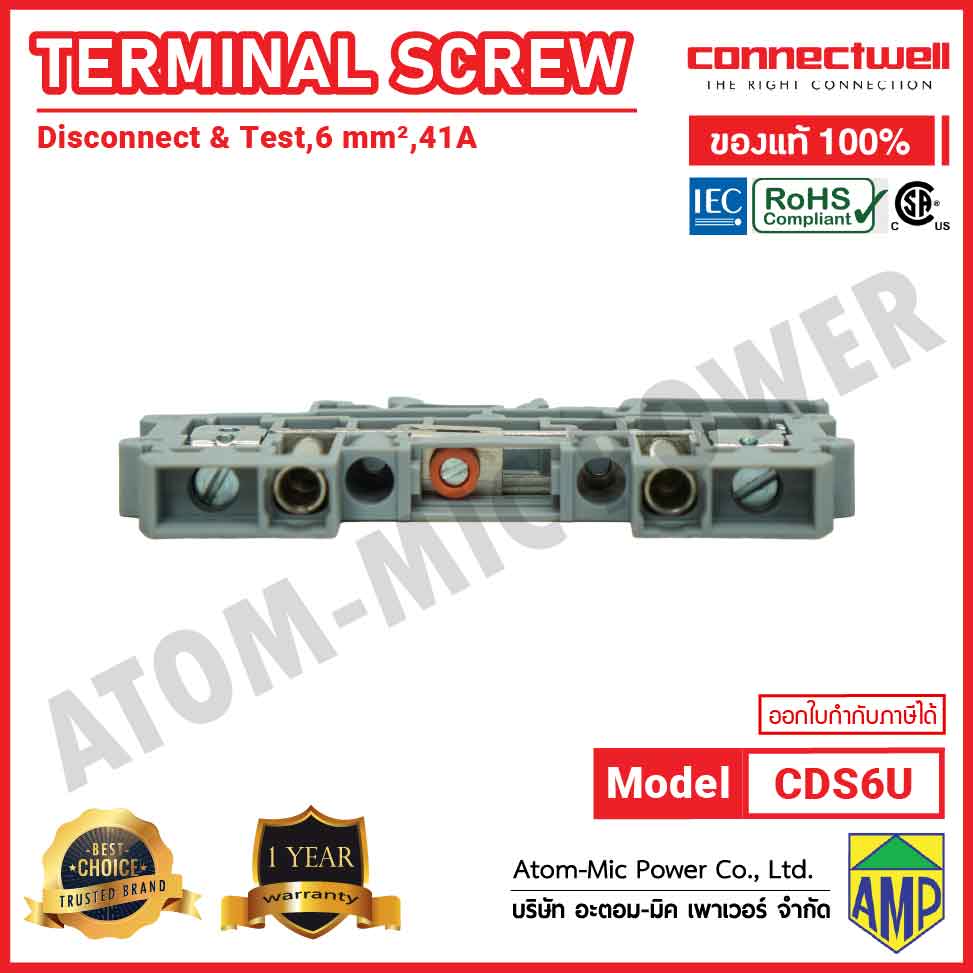

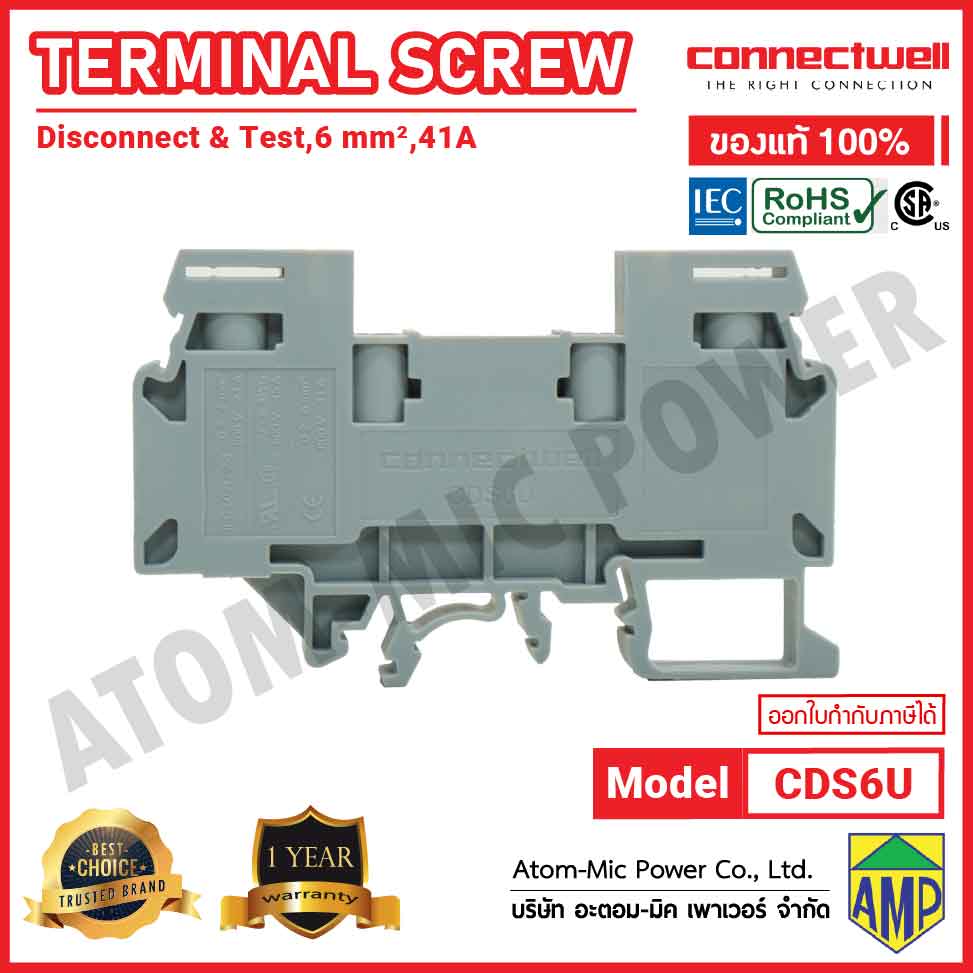

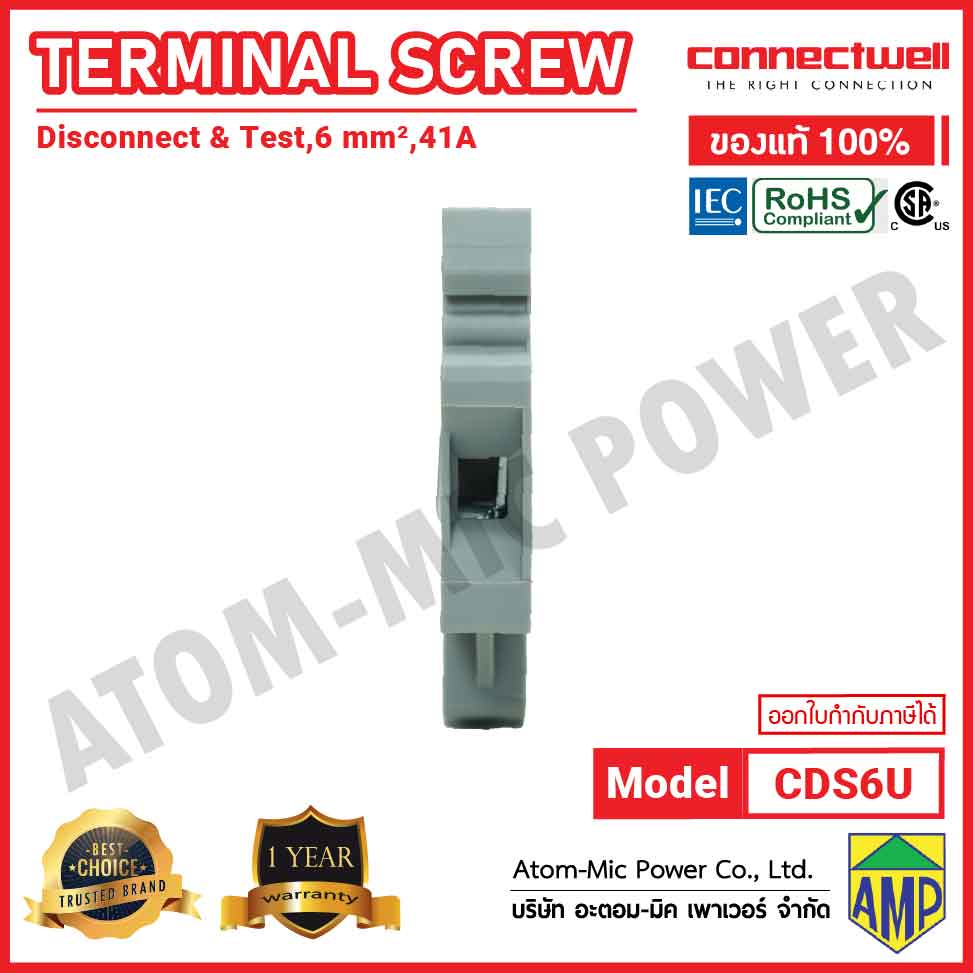

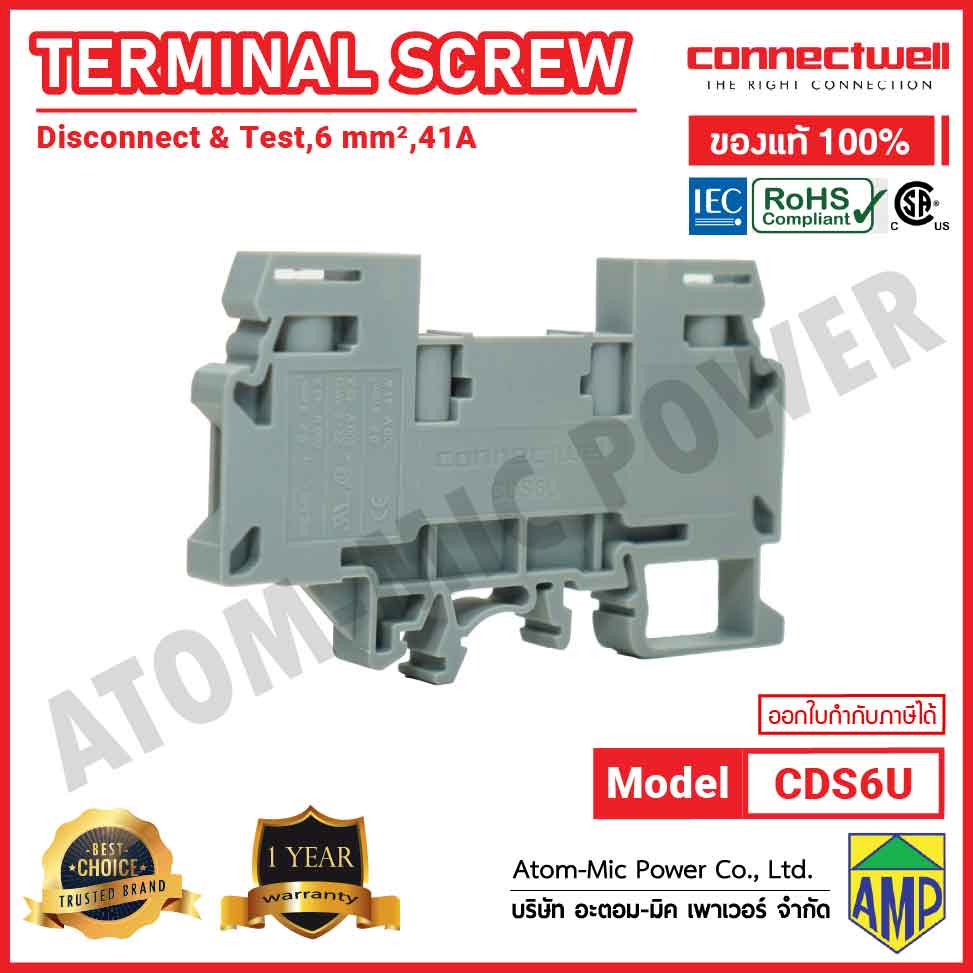

CONNECTWELL – Screw Clamp Disconnect & Test Terminal Block – CDS6U

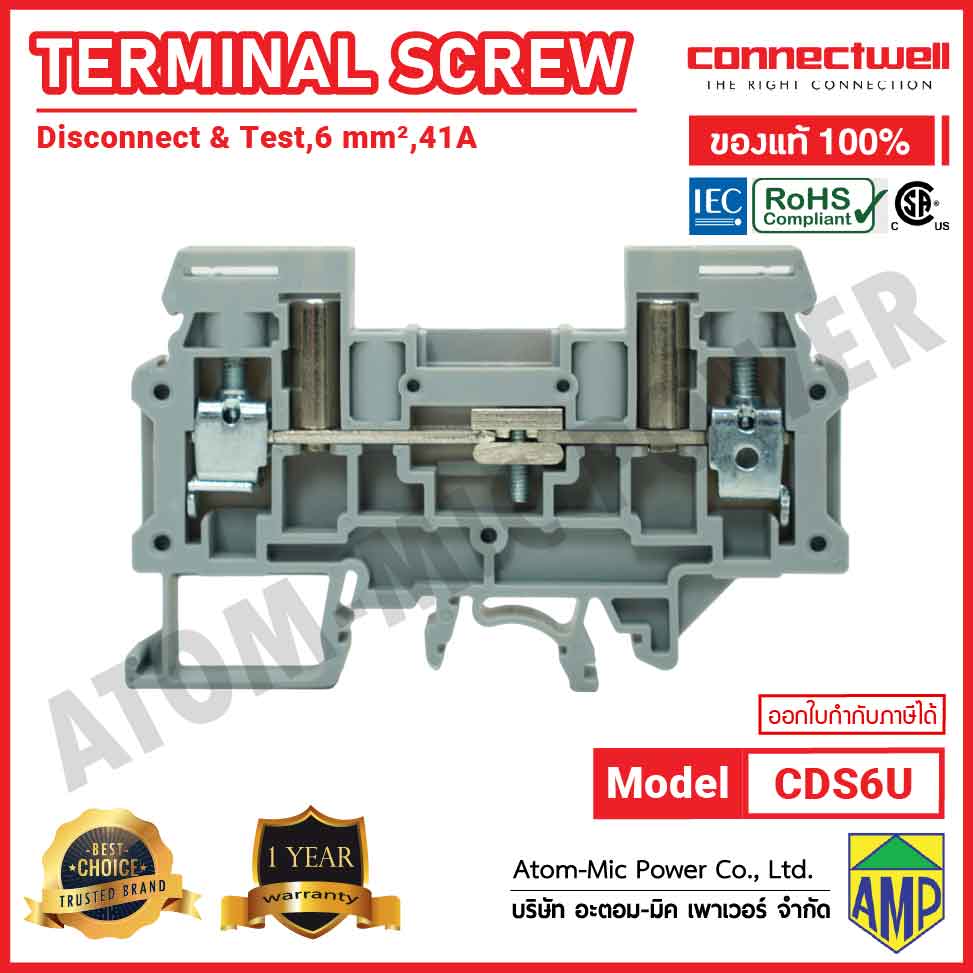

CDS6U is a sliding type disconnect & test terminal block. Disconnection is achieved by opening the sliding link operated with the help of screwdriver. With array of accessories such as sliding type shorting link, lockout caps and test plugs these terminal blocks can be used for safe and step by step operation of 3 Phase 3 Wire & 3 Phase 4 Wire transformer circuits.

Short-Time Withstand Current
0.72 kA
Type of Connection
Screw Clamp
Wire Entry Orientation
Side
Operating Temperature Range
-40 to +105
Number of Levels
1
Number of Connections
2
Rated Voltage (IEC)
800 V
Rated Current (IEC)
41 A
Tightening Torque (IEC)
0.8 Nm
Rated Voltage (UL/CSA)
600 V
Rated Current (UL/CSA)
45 A
Tightening Torque (UL/CSA)
14 lb-in
Mounting Possibility
DIN 32/DIN 35/DIN 35-15 Rail
Internally Shorted
No
Screw Size
M3.5
Disconnection method
Sliding Disconnect
Operated by
Screwdriver
Rated Surge Voltage
8 kV
Overvoltage Category
III
Pollution Degree
3
