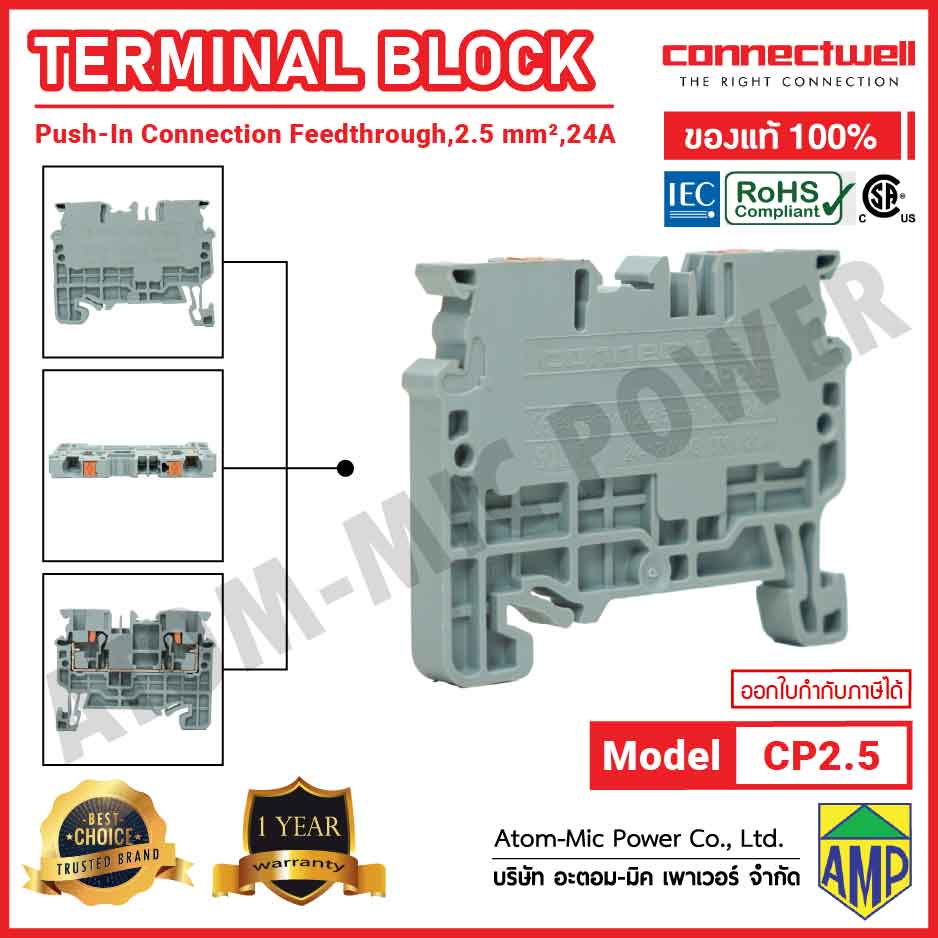

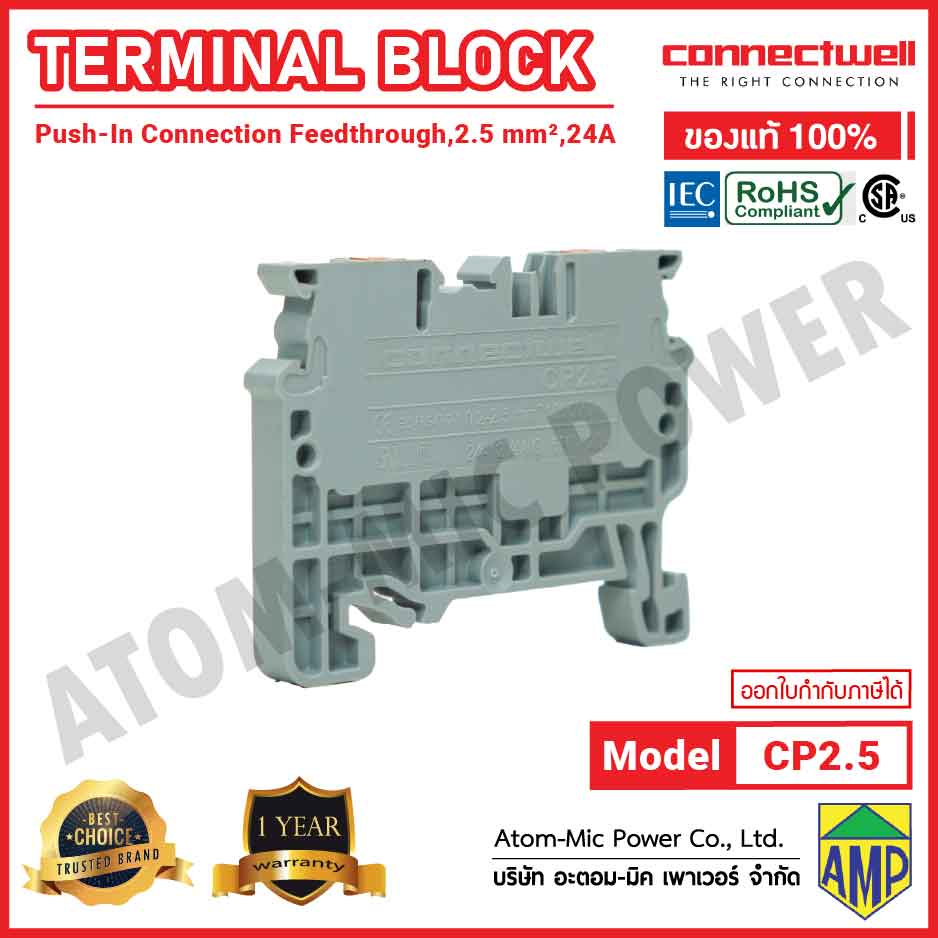

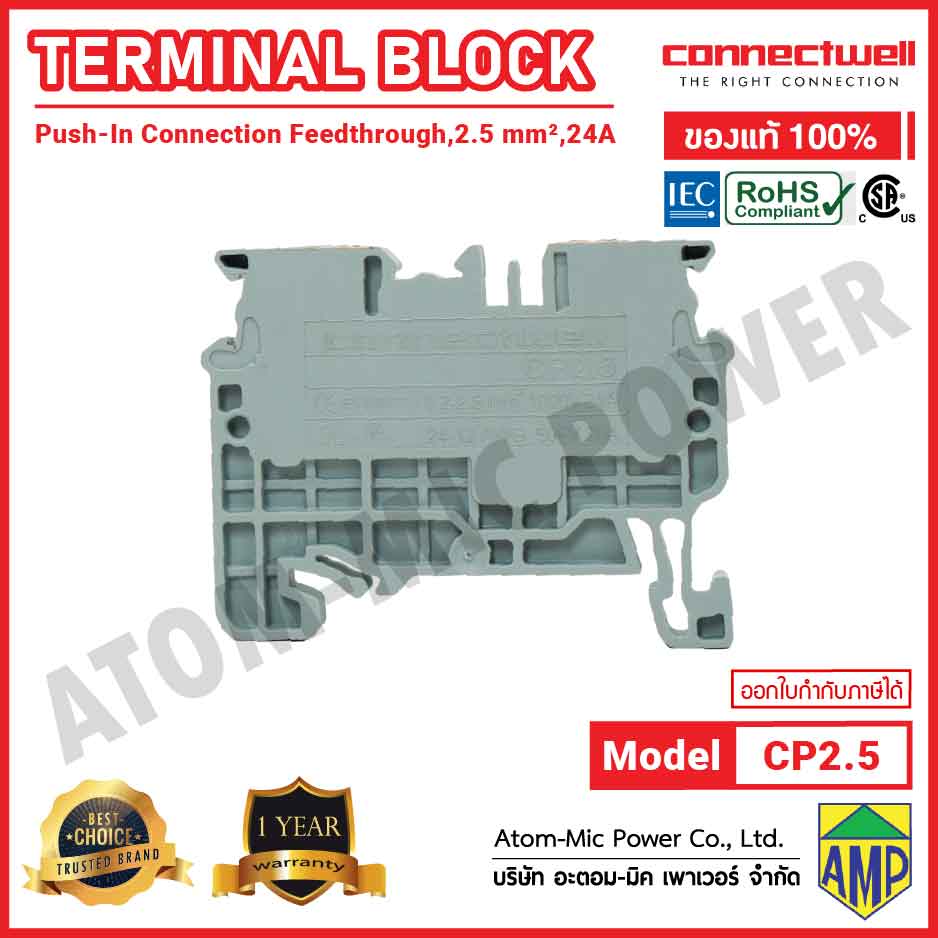

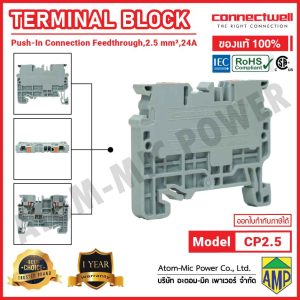

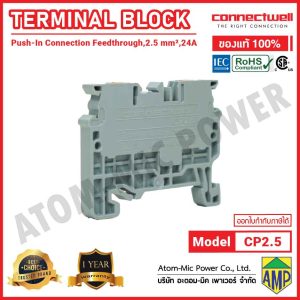

CONNECTWELL – Push-In Connection Feedthrough Terminal Block – CP2.5

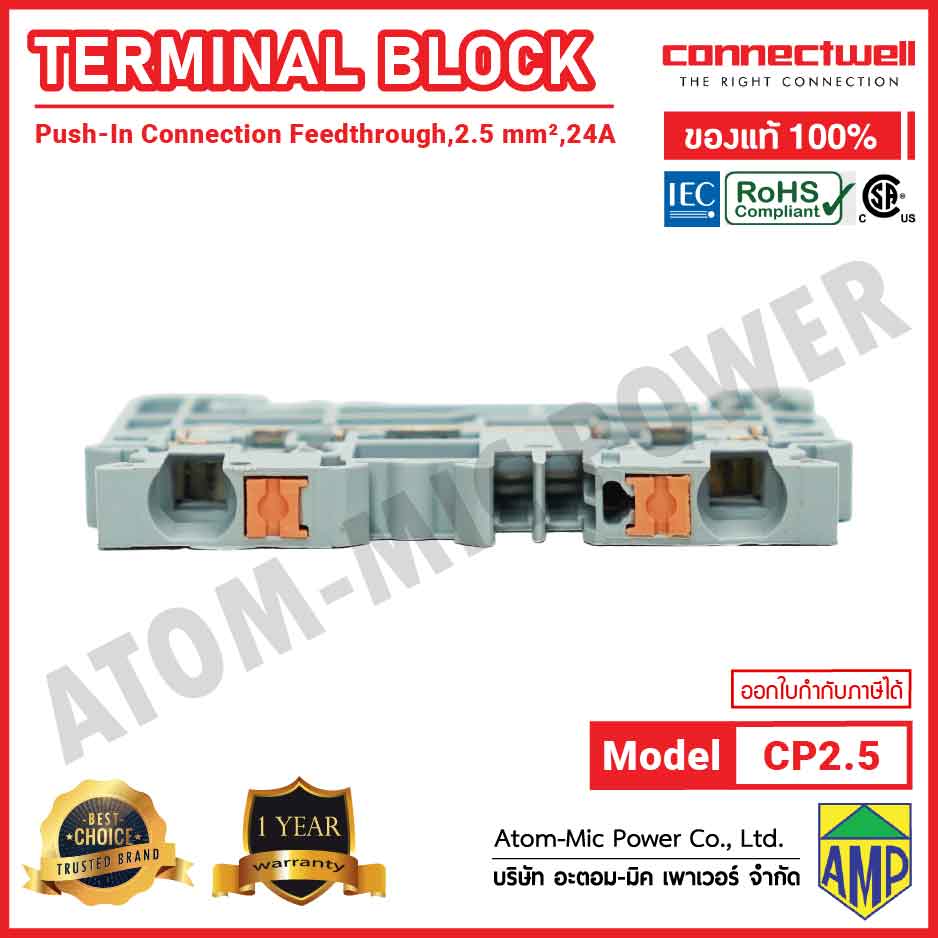

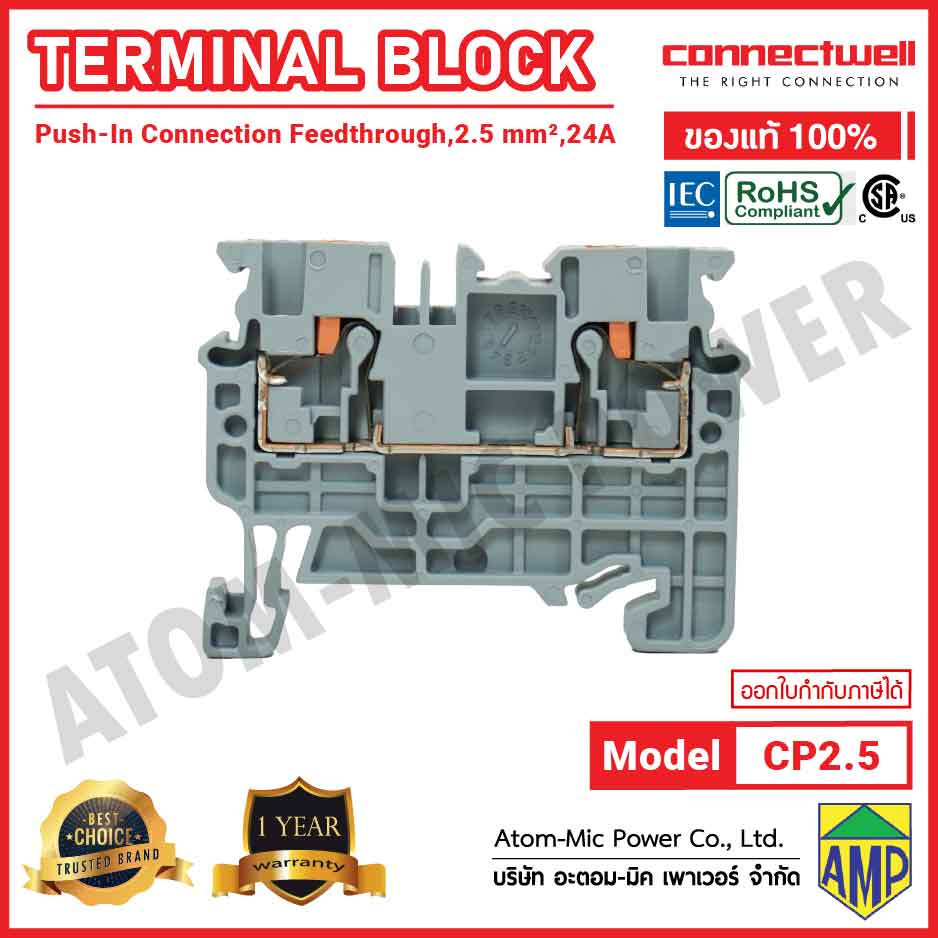

CP2.5 is a Push-In connection technology terminal block with two connection points. Lugged wires can be directly inserted without using a screwdriver. Solid wires can be inserted without any preparation. To remove the wire, the orange push button must be actuated using a screwdriver.

CPG2.5 is the same profile ground terminal block and can be used along with CP2.5 for connecting ground wires.

Ambient Temperature (Storage / Transport)
25 °C
Short-Time Withstand Current
0.3 kA
Type of Connection
Push-In
Wire Entry Orientation
Top
Operating Temperature Range
-40 to +105
Number of Levels
1
Number of Connections
2
Rated Voltage (IEC)
1000 V
Rated Current (IEC)
24 A
Rated Voltage (UL/CSA)
600 V
Rated Current (UL/CSA)
20 A
Mounting Possibility
DIN 35/DIN 35-15 Rail
Internally Shorted
No
Operated by
Screwdriver
Rated Surge Voltage
8 kV
Overvoltage Category
III
Pollution Degree
3
