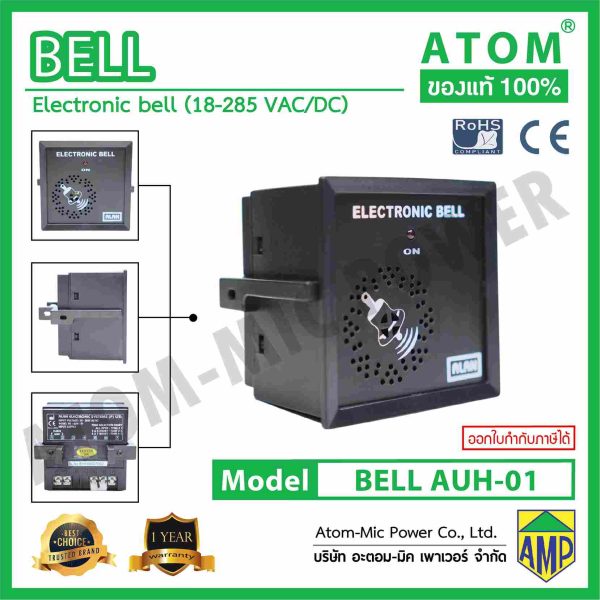

ATOM-BELL AUH-01 (18-285 VAC/DC)-Electronic Hooter

FEATURES
Burden less than 15mA at nominal input
Audio Output : 100dBA +/- 5%
Panel Cut out size : 92mm x 92mm
Overall dimension : 96mm x 96mm x 60mm
Weight : 230gms. (Approx.)
No. of tones : Three tone (Site selectable)

INSTRUCTIONS FOR THE USER
1) Connect the input supply of respective Model at terminal 1 & 2 and 1 & 3 as per shown in
operating voltage range chart.
2) After connecting the supply, if all the other terminals are kept open, Tone -I will be
available. If terminal no.5 & no.6 are shorted Tone -II will be available, if terminal no.6 &
no. 7, are shorted . Tone -III will be available, refer below given chart for tone.
3) Clamps supplied can be used for panel (flush) as well as base (wall ) mounting as
shown in below diagram.
